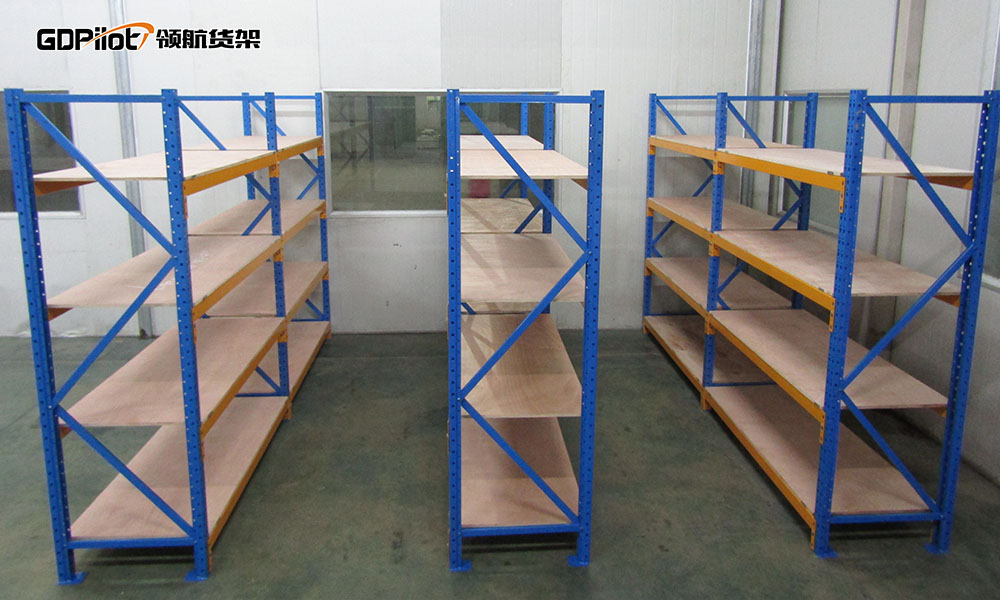

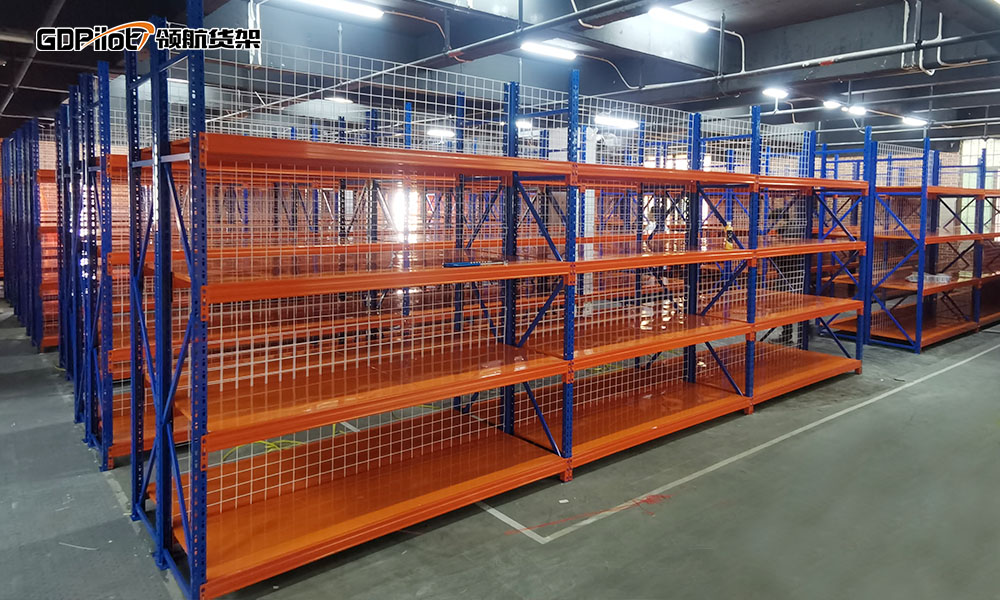

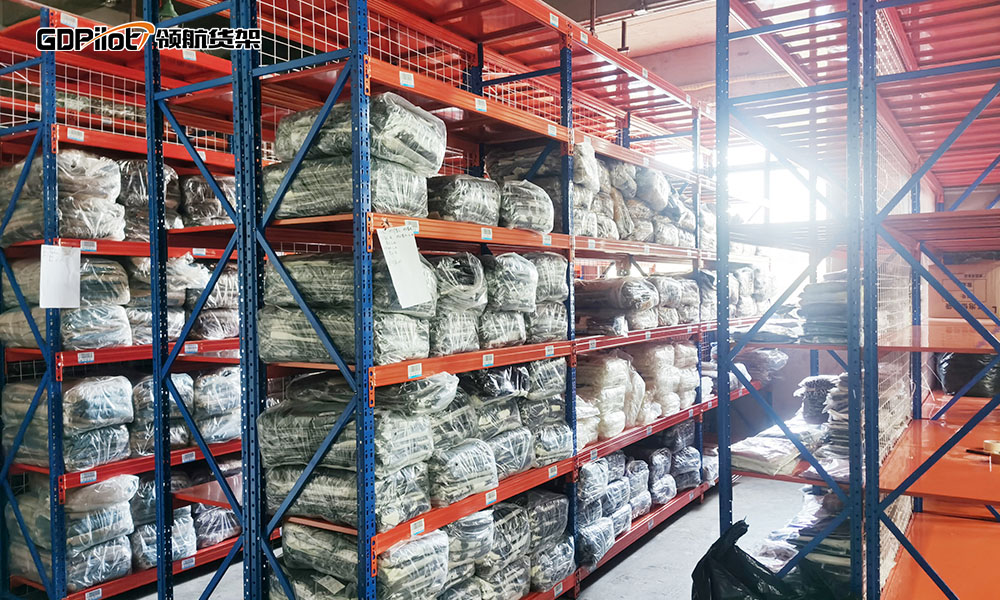

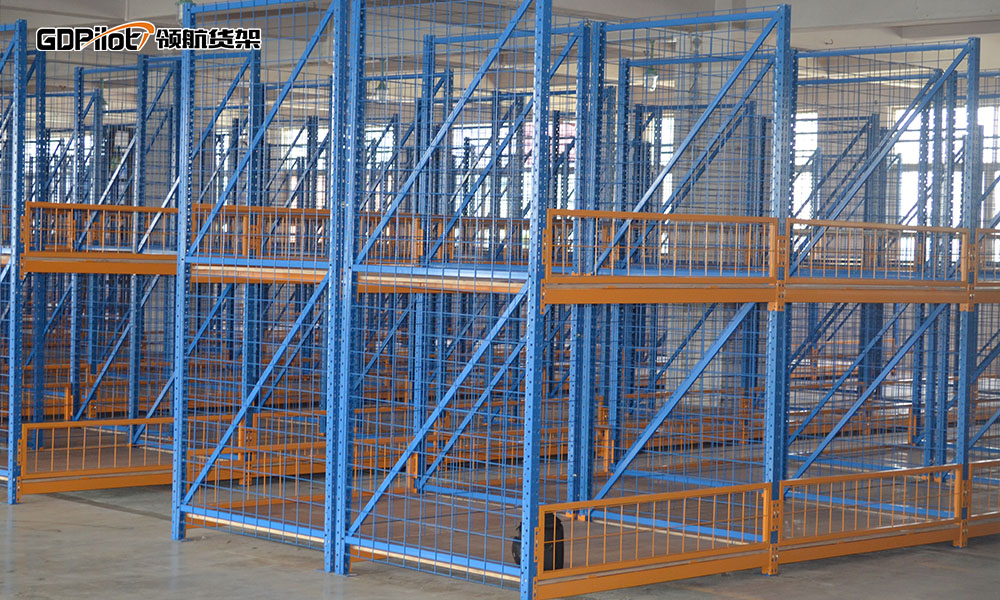

LIGHT / MEDIUM DUTY RACK

Light duty rack, light duty shelf, modular design with no screws, easy installation and disassembly. Widely used in factories, shopping malls and small warehouse, suitable for storing light and small goods,it is a kind of shelf rack. Gdpilot upright was bent into U-shape slot structure, which is more complicated of hte bending structure and stronger bearing capacity and durable compair with the angle steel shelf on the market. Load capacity: 200~800kg.
Get an offer
Features
■ Assembling structure,optional combination.
■ Optional laminate: plywood or steel board.
■ Each 50mm/60mm pitch is adjustable.
■ Professional surface treatment:polishing,surface descaling, degreasing, electrostatic，powder coating processing.
■ Easy installation and disassembly.
High quality steel strip, automatic rolling mill in 12 bend angle, punching, and cut the height according to customers' requirements. This structure with strong bearing capacity and high safety factor.
GDPilot steel laminate base with reinforcement design which inhance the load capacity, and it is not easy to deformation.
There are different thickness plywood for chosen, 9mm, 12mm, 15mm, 18mm.<br>As the laminate for each layer of the shelves, it is easy for installation.<br>Surface is smooth and will not damage the storage goods.
  • Upright
  • Steel laminate
  • Plywood laminate

Upright

High quality steel strip, automatic rolling mill in 12 bend angle, punching, and cut the height according to customers' requirements. This structure with strong bearing capacity and high safety factor.

Steel laminate

GDPilot steel laminate base with reinforcement design which inhance the load capacity, and it is not easy to deformation.

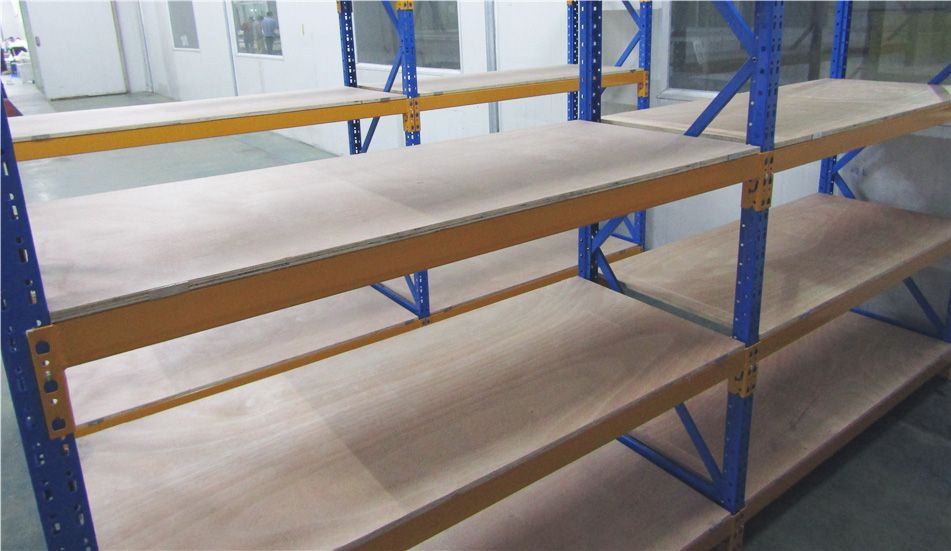

Plywood laminate

There are different thickness plywood for chosen, 9mm, 12mm, 15mm, 18mm.
As the laminate for each layer of the shelves, it is easy for installation.
Surface is smooth and will not damage the storage goods.


  SPECIFICATION

LengthWidthHeightLoad Capacity
1000-2500mm400-1200mm1800-4800mm200-800kg per layer
Special size or loading capacity are available for customized.
Upright specification52*45*1.5, 52*45*2.0, 70*50*1.5, 70*50*2.0
Beam specification

Square tube: 50*30*1.5, 60*30*1.5, 60*40*1.5, 80*40*2.0, 100*50*2.0

P-shape tube: 55*45*0.8, 75*45*1.2, 60*40*2.0, 60*40*1.5, 50*30*1.5

Box beam: 80*45*1.5, 100*45*1.5, 100*45*2.0

Can be equipped withPlywood laminate, steel laminate, wire mesh decking
Surface treatmentPowder coated


Send your message to GDPilot for what you need/quote
